LED digital sign
LED Scoreboard
Introduction：
Designed for a variety of sports competitions, the digital LED display is a reliable and easy to use scoring device that uses highly bright LED lamps and a control system. The LED scoreboard's brightness can be adjusted in 8 different levels according to different environments.
Used in numerous competitions, such as basketball games and football matches, the match scoring system has clearly demonstrated integrated information to spectators, athletes, and referees in multiple kinds of competitions.
In addition, we can produce a 24 second timer, various scoreboards, football substitution boards, countdown clocks and more, and customized service is always available. If you are interested in any of our digital LED displays, please contact us and let us know more.
Features:
● The LED alarm clock uses high quality LED lamps with high brightness and good visibility.
● This LED scoreboard features a low power consumption and a long service life, a stable performance and it is highly reliable.
● Our digital LED displays are easy to operate, as the support simple and convenient cable control.

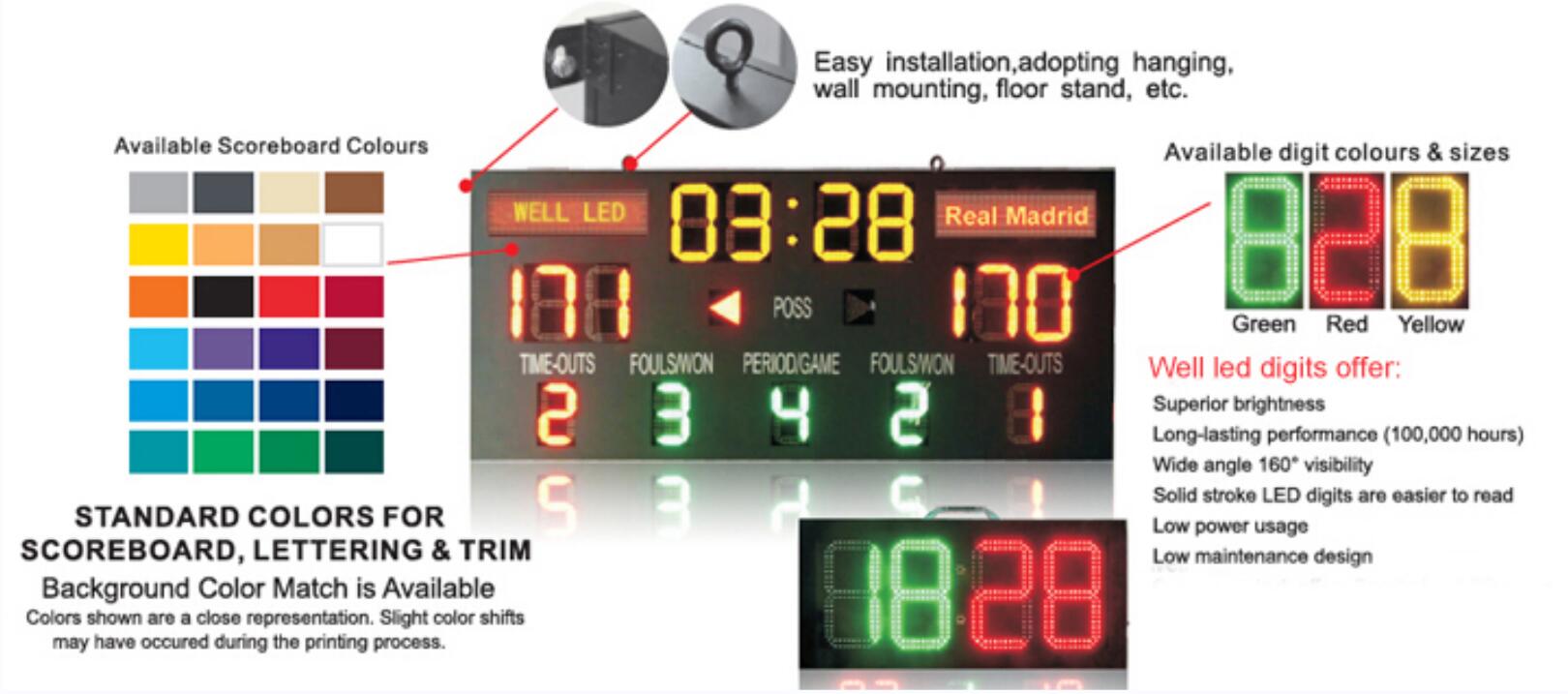

● We provide a variety of different display contents, including team names, game scores, number of sections, time-outs, fouls, right to serve, competition time, and a 24 second countdown.
● With a moderate size and assembled with a movable stand, the LED sign is convenient and flexible for use and storage.
● Contents can be displayed in different colors, including red, green and yellow.
● The digital LED display's power down data protection lasts for up to 30 days.
● Date and time can be set, with a time error of less than 10 seconds per month. The digital countdown timer has an automatic alarm when time runs out.
● We carry out strict quality control and three 24 hour high intensity aging tests.
● Communication method: RS232、RS422、RS485、RF modem.
● Weatherproof design for outdoor type and easy to install.
● Battery backup maintains time during power failure for up to 10 years.
Parameters：
|
Items |
Technical Parameters |
|
Colors |
Red, yellow, green, blue ,white, etc. |
|
Display Height |
4", 6", 8", 10", 12", 16", 18",20",24",27",32", 36", 40", 48", 60", 72", etc. |
|
Brightness Control |
Automatically adjusted or remote controlled by a brightness sensor |
|
Screen Brightness Adjustment |
Automatic adjustment: 8 levels |
|
Viewing Angle |
Indoor: Horizontal:120°; Vertical: 100°; or customized |
|
Maintenance |
Front maintenance, Back maintenance or customized |
|
Cabinet Materials |
Iron or aluminum |
|
Front Cover |
Digital LED displays with the size of 32" have no front covers; other digital LED displays have organic glasses made front covers. |
|
Protection Class of Waterproof Performance |
Front: IP65; Back: IP54 |
|
LED Drive Mode |
Constant current |
|
Power Input |
110/220VAC , 60Hz/50Hz |
|
Control Mode |
Key control, RF Remote Control, IR Remote Control, RS232, RS485, TCP/IP, WiFi, etc. |
|
Control Distance |
RF: 100-150m, IR: 8-10m |
|
Continuous Working Time |
No restrictions |
|
LED Lifespan |
>100,000 hours |
|
Working Environment |
Indoor:-10℃-40℃; Outdoor:-20℃-60℃; Humidity: 15%-95%RH |

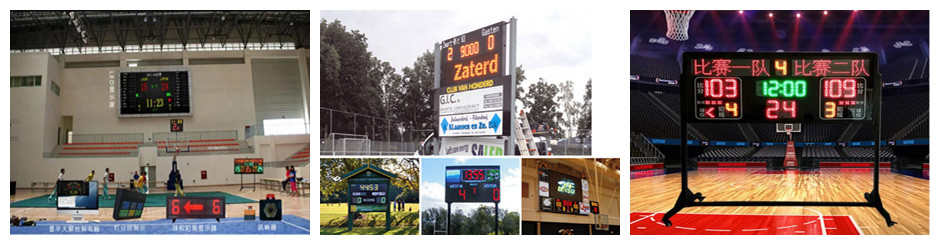

Applications:
The LED scoreboard is widely used in a variety of competitions and events, including basketball games, volleyball matches, futsal soccer games, badminton games, table tennis matches, judo matches, and boxing. Our digital LED display also has multipurpose uses in athletics and student sports tutorials.
