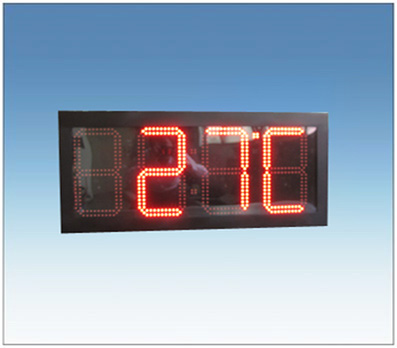

LED digital sign
4 bits time temperature
Introduction：
WELL-LED 88:88 time signs are ideal for attracting potential customers'attention to your business, while providing beneficial information to the community. competitive price to give you outstanding value, while minimize your maintenance and energy costs.
Features:
● Control system: Well-led Time and Temperature system.
● Indoor or outdoor brightness available.
● Display format: 88:88 or 88:88:88 or customized.
● Time display: time(T).

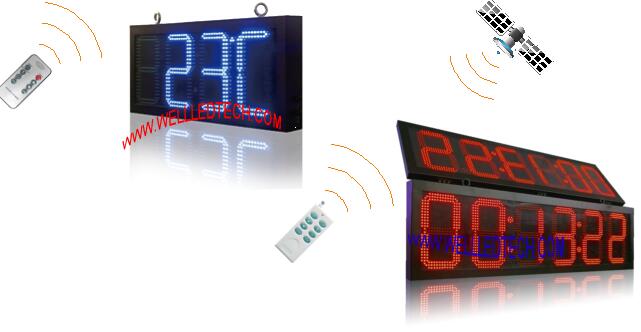

● Temperature display: Celsius(℃) , Fahrenheit (℉) the clients can change with remote control.
● Set brightness level freely.
● Different sizes and colors are available that fit your flexible needs and wants.
● A finished cabinet makes installation trouble-free with no additional fabrication needed.
● Customized face designs.
● High intensity LEDs allow for us to manufacture with more efficient display.
● Automatic night time dimming capability with built-in light sensor.
● Battery backup to retain the display’s memory in case of power outages.
● Up to 255 pieces can be networked, and two kinds of remote control methods with 8-button operation.
Parameters:
|
Item |
Technical Parameters |
|
Color |
Red, amber, green, blue or white |
|
Digit height |
4", 6", 8", 10", 12", 16", 18",20",24",27",32", 36", 40", 48", 60", 72" etc. |
|
Digit design |
4", 6", 8",10", 12", 16",18",20",24",27",32": standard digit. |
|
Brightness control |
Auto-dimming by sensor or remote control. |
|
Display Dimming |
Over 8 levels of automatic intensity adjustment. |
|
Viewing Angle |
Indoor: H120° , V 100°, Outdoor: H 120° , V100° or customized. |
|
Service Access |
Rear access or customized. |
|
Master/Slave |
Single/Double/Three/four sides, use one control card, all working. or customized. |
|
Casing Material |
Steel, aluminum available. |
|
Front cover |
Displays with 32" & over digit high are without front cover; others with front cover. |
|
Waterproof Level |
IP 54 from 4" to 32" (outdoor), IP65 front & IP54 rear from 32" to 72" (outdoor). |
|
Temperature sensor |
Default economical sensor, All sensor is available for more exact request. |
|
LED Driving mode |
Constant current |
|
Power Input |
110/220VAC , 60Hz/50Hz |
|

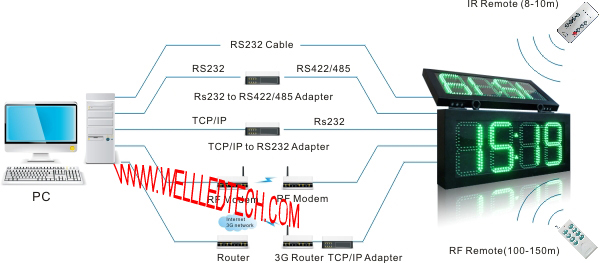

PC Communication |
Rs232 |
|
Communication Distance |
8m |
|
Remote control type |
300ft / 100m, range of RF remote control. |
|
Continuous Working Time |
Unlimited |
|
Lifetime of LEDs |
>100,000 Hours |
|
Installation Method |
Hanging, mounting or per custom design. |
|
Working Temperature |
Indoor: -10°C ~ 40°C，Outdoor: -20°C ~ 60°C， Humidity: 15%~95%RH |
|
Display format |
88：88 or 88:88:88 |
|
GPS |
Optional |

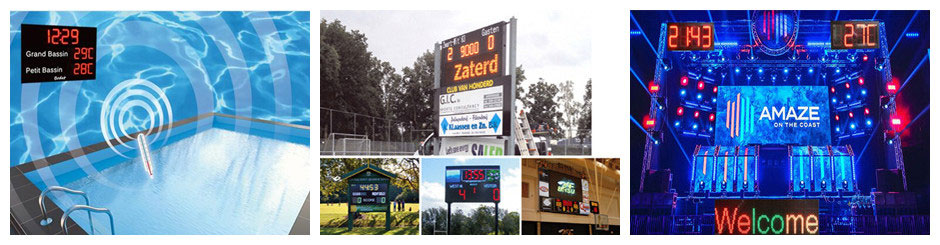

Applications:
