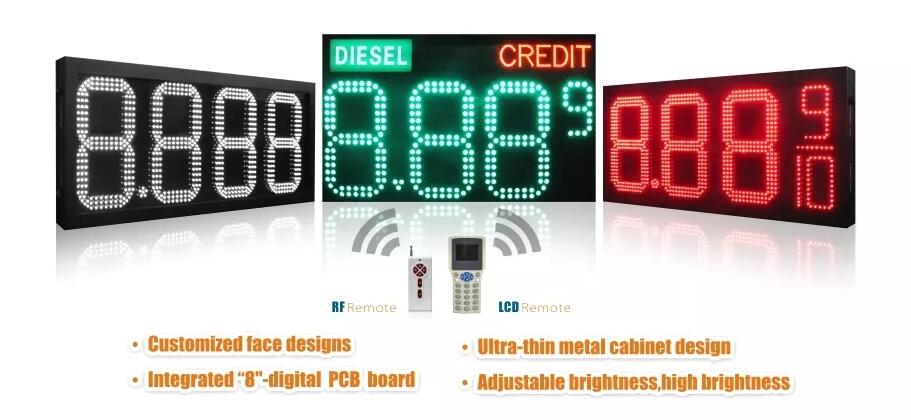

8. 8 8 8 gas price sign

Introduction：

WELL LED Mixed LED Gas Price Sign is designed for the special needs of customers and products 。

It is very good traditional light box advertising screen and integrate oil brand , the overall effect is elegant, stylish eye-catching.

WELL-LED to provide customized products, product uses high brightness LED traffic LED chip, high-sensitivity sensor .

Brightness sensor automatically adjusts with the environment , can support a variety of communication, price replacement easier!

Features:

●Control System: The LED gas price sign's control system allows for easy and fast changes on the display screen.
● Height Adjustment: The LED signs can have their height adjusted.

Which allows them to be adapted to the surrounding environment and meet energy conservation and environmental protection needs.
1. With a light sensitive probe, the outdoor LED panel has an automatic height adjustment according to the environment.

2. The height is adjusted via a wireless remote control.
3. The height is also adjusted using computer software.

●Multiple control modes: With multiple control methods, the LED signs are easy to operate and have a long control distance.
1. RF remote controller
2 LCD remote control
3. Wireless RF data transmission (200m)
4. Wireless WiFi control
5. When connected to a computer, the RS232 communication can have a maximum transmission distance of up to 15 meters.

Connect computer software to the RS485 communication and the transmission distance is up to 1,200m.
6. The TCP/IP network control is achieved via LAN or remote computer

control.
7. The IP can be provided to customers to develop as they see fit.

● Optional brightness for outdoor displays/semi outdoor displays
● Display Format: 8.88, 8.889, 8.888, 8.889/10
● The ultra-thin cabinet design can meet specific customer requirements.
● An impeccable and rational structural cabinet design makes installation easy.
● Custom designed LED fuel price signs are available.
● Different colors and sizes are available to choose from.
● A fault indicator facilitates the troubleshooting.
● The LED sign's display screen allows for a versatile publicity and easy

adjustment.
● High quality, and ultra bright LED lamps make the display of gas prices

eye catching, stable and reliable

● The LED signs have passed CE, FCC, RoHS, UL and other international standards.

Parameter:

Item	Technical Parameters
Color	Red, amber, green, blue or white
Digit Height	4", 6", 8", 10", 12", 16",18",20", 24", 32", 36", 48", 60" etc.
Digit Design	4"~24" : standard digit; 32" and above are multi-stroke seven segment digits.
Brightness Control	Auto-dimming by sensor.
Display Dimming	Over 8 levels of automatic intensity adjustment.
Viewing Angle	Horizontal: 120°, Vertical: 100° or customized
Service Access	Front or rear access
Master/slave	Single/Double side, master/slaves available
Casing Material	Steel, aluminum available.
Waterproof Level	IP 54 from 4" to 32" (outdoor), IP65 front & IP54 rear from 32" to 60" (outdoor)
Led Driving Mode	Constant current
Power Input	110/220VAC , 60Hz/50Hz
Pc Communication	Rs232/ RS422(standard);  LAN(TCP/IP),GSM modem, RF modem
Communication Distance	Max.15meters for RS232, 1200meters for RS422
Remote Control Type	RF wireless remote control with communication range of 300ft / 100m.
Lifetime of Leds	>100,000 Hours
Installation Method	Hanging, mounting or per custom design
Working Temperature	Indoor:-20°C to +60°C; Humidity: 15% -95%RH
Display Format	8.88 8.888    8.889   8.88 9/10 etc.

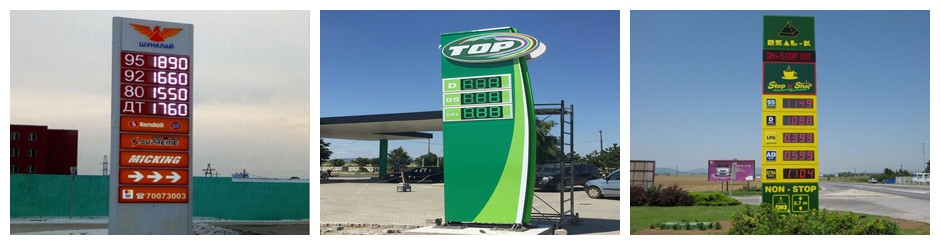

Applications:
