Rental LED screen
Indoor Rental LED screen P2
Overview:
WELL LED Rental display is high performance-cost rental LED screen for varieties of activities, die-casting aluminum cabinets with fast locks and cable connectors help users install & disassemble quickly and easily for varieties of events. meanwhile, it’s able to add scale locks to make curve LED screen.
Advantages:
1. Energy-saving≥30%.
2. Brightness≥5500cd/m2
3. High accuracy and high flatness.
4. Replaceable modules, fast and easy replace.
5. Front and rear service.
6. IP54 protection grade
7.128*256mm module size, you can assemble it into different size screens.
Parameter:
|
|
||
|
Parameter |
Item |
Parameter |
|
Model Number |
P2-32S |
|
|
Module size |
128mm(H)*256mm(V) |
|
|
Pixel pitch |
2mm |
|
|
Pixels Density |
250000dots/m2 |
|
|
Pixel configuration |
1R1G1B |
|
|
Package mode |
SMD1515 |
|
|
Drive type |
Constant drive (MBI5124/2037) |
|
|
Scan mode |
1/32scan |
|
|
Port type |
HUB75 |
|
|
Brightness of white balance |
≥55000cd/m2 |
|
|
Best viewing distance |
5M～50M |
|
|
Best viewing distance |
160°(W) 120°(H) |
|
|
Temperature |
storage:-35℃～+85℃
working:-20℃～+50℃ |
|
|
Refresh |
>1920-3840HZ |
|
|
Gray Grade |
14 bits |
|
|
Thickness |
85mm |
|
|
Working voltage |
AC220V±10% |
|
|
Average Power consumption |
450W/S |
|
|
Cabinet size |
512*512mm |
|
|
Cabinet Pixel resolution |
256dots(W)*256dots(H) |
|
|
Material |
Die cast aluminum |
|
|
Average Power consumption |
400W/S |
|
|
If >6000 cd/㎡; 800W/S |
||
|
System support |
Linsn / Nova star
|
|

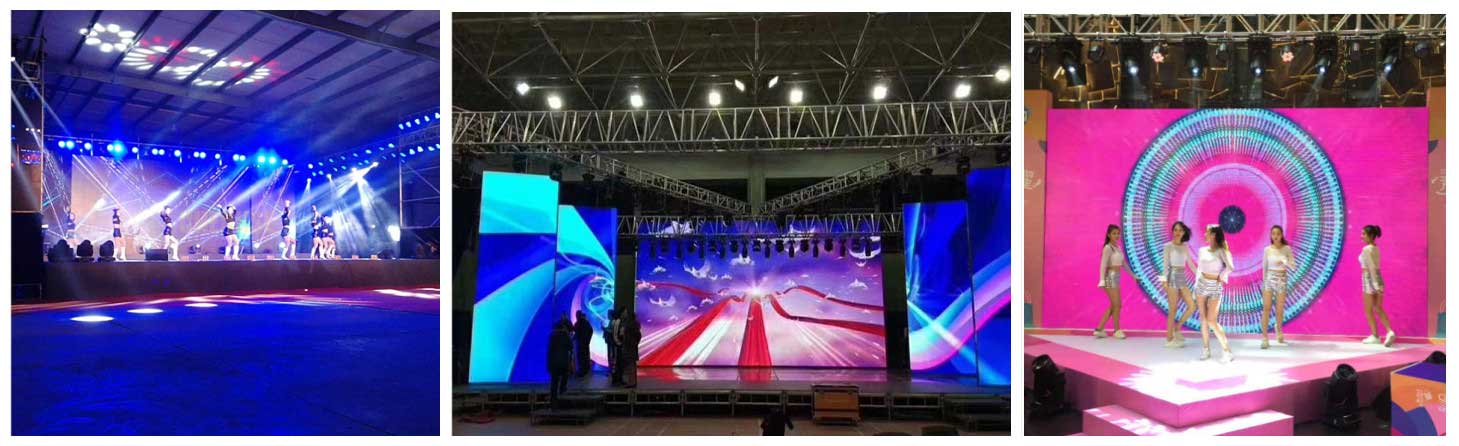

Project case:
