Indoor LED screen P2

Overview:

1.WELL LED indoor p2 Die-cast aluminum cabinet, light weight, thin body;
2. Dc5.0v working voltage, energy saving and low power consumption;
3. High refresh rate and high gray scale;
4. All black lights, high contrast;
5. No fan, no noise;
6. The box body is connected with full locks for quick assembly;
7. Standardized cabinet size
8. Dust-proof design, the overall protection level reaches IP43.

Advantages:
P2 indoor LED display die-casting cabinet is light, thin, high flatness, easy to carry and low transportation cost.
P2LED full color screen quick lock and locating pin for quick installation and disassembly.
P2LED indoor display screen middle and high-end configuration, stable performance, good flatness, seamless splicing.
For format aspect, P4indoor display screen can be arranged by users at will. Display text, pictures, charts, images, animation, video information; And the amount of information displayed is unlimited.
Indoor P2 screen has a large viewing Angle, uniform color and high brightness, which is specially designed to create LED stage background screen for stage performances.
Indoor P2display screen adopts imported luminous material, high-quality IC chip, noiseless high-power power supply; No fan design, no noise, low power consumption, can be used in the temperature range of -25℃~50℃.
Indoor P2ull-color LED display can support both synchronous control card and asynchronous control card; Even in the control of the computer failure, still can normally display and play.
P2 indoor LED full-color display system works stably and reliably, has strong anti-interference ability, works continuously for more than 72 hours, the control system software operation interface is humanized design, the operation is simple.

Parameter:

Technical  Parameters
Pitch	2MM

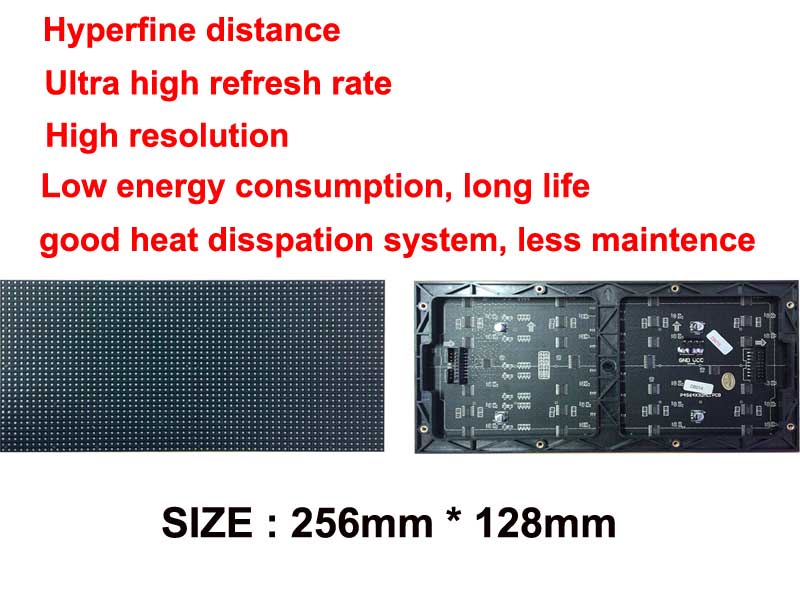

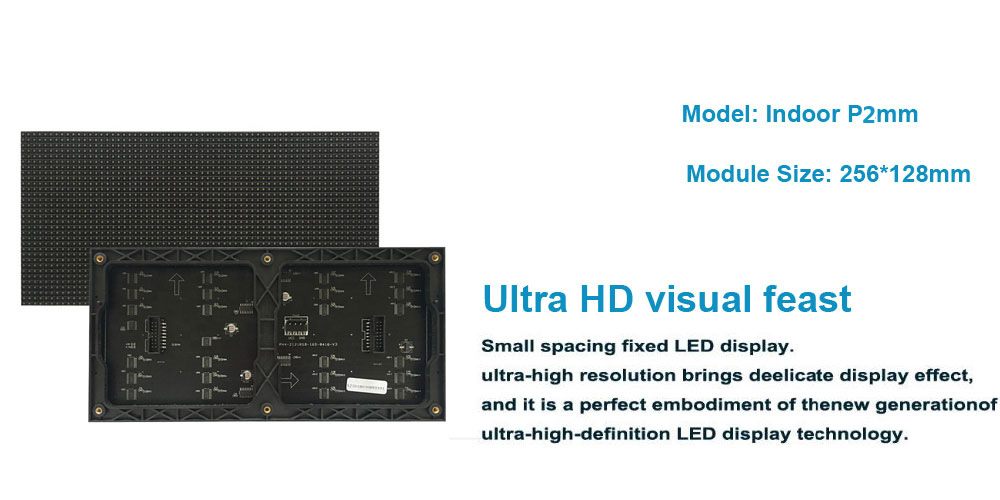

Panel size	L256*H128*T13 MM
Physical density	250000dots/M2
Driving method	32scan
LED Encapsulation	SMD1515
Module weight	0.35 KG
Cabinet Size	640mm*640mm
Viewing angle	140°
Option distance	Apr-50 M
Maximum power	1000 W/M2
Refresh frequency	≥1920 HZ/S
Equilibrium brightness	≥1500CD/M2
Working environment temperature	-25~50℃
Working environment humidity	RH 10%~90%
Display working voltage	110V/220V
Control system	NovaStar,LINSN, Colorlight, HuiDu   control system
Lifespan  HOURS 100000	100000  HOURS
IP rating	IP54
