Indoor LED screen

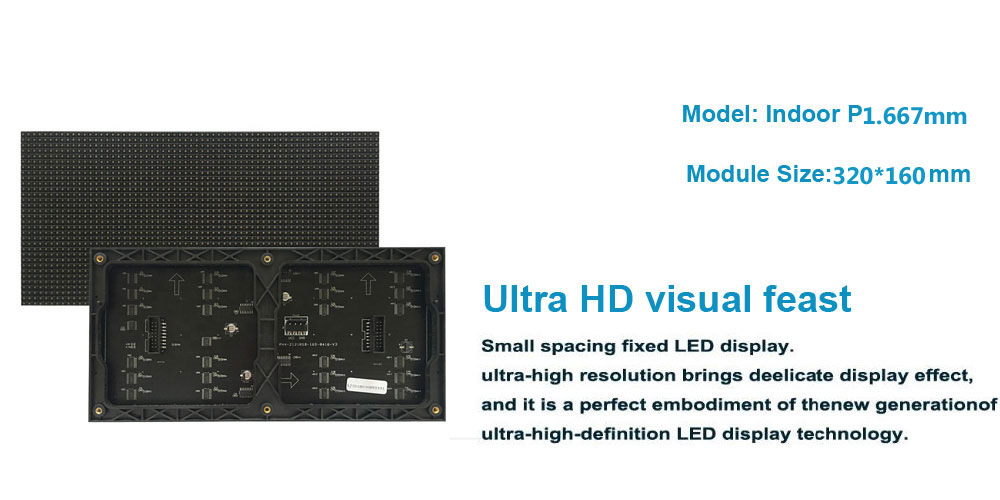

Indoor small spacing screen P1.667
Overview:
1.WELL LED indoor p1.667Die-cast aluminum cabinet, light weight, thin body;
2. Dc5.0v working voltage, energy saving and low power consumption;
3. High refresh rate and high gray scale;
4. All black lights, high contrast;
5. No fan, no noise;
6. The box body is connected with full locks for quick assembly;
7. Standardized cabinet size
8. Dust-proof design, the overall protection level reaches IP43.
Advantages:
P1.667indoor LED display die-casting cabinet is light, thin, high flatness, easy to carry and low transportation cost.
P1.667LED full color screen quick lock and locating pin for quick installation and disassembly.
P1.667LED indoor display screen middle and high-end configuration, stable performance, good flatness, seamless splicing.
For format aspect, P1.667indoor display screen can be arranged by users at will. Display text, pictures, charts, images, animation, video information; And the amount of information displayed is unlimited.
Indoor P1.667screen has a large viewing Angle, uniform color and high brightness, which is specially designed to create LED stage background screen for stage performances.
Indoor P1.667display screen adopts imported luminous material, high-quality IC chip, noiseless high-power power supply; No fan design, no noise, low power consumption, can be used in the temperature range of -25℃~50℃.
Indoor P1.667ull-color LED display can support both synchronous control card and asynchronous control card; Even in the control of the computer failure, still can normally display and play.
P1.667 indoor LED full-color display system works stably and reliably, has strong anti-interference ability, works continuously for more than 72 hours, the control system software operation interface is humanized design, the operation is simple.
Parameter:
| Technical Parameters | |
| Pitch | 1.667MM |
| Panel size | L320*H160*T13 MM |
| Physical density | 360000dots/M2 |
| Driving method | 45scan |
| LED Encapsulation | SMD 1212 |
| Module weight | 0.35 KG |
| Cabinet Size | 640mm*640mm |
| Viewing angle | 140° |
| Option distance | Apr-50 M |
| Maximum power | 1000 W/M2 |
| Refresh frequency | ≥1920 HZ/S |
| Equilibrium brightness | ≥1500CD/M2 |
| Working environment temperature | -25~50℃ |
| Working environment humidity | RH 10%~90% |
| Display working voltage | 110V/220V |
| Control system | NovaStar,LINSN, Colorlight, HuiDu control system |
| Lifespan HOURS 100000 | 100000 HOURS |
| IP rating | IP54 |
